HIOS HP-100 SMT Spare Parts Hp100 Analyzer Electronic Digital Torque Wrench Tester

Product Categories

Shenzhen Wenzhan Electronic Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

HIOS HP-100 SMT Spare Parts Hp100 Analyzer Electronic Digital Torque Wrench Tester

Model Number : HP-100

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Western Union,Paypal,Credit card

Supply Ability : 3000

Delivery Time : 5-8 days

Packaging Details : 1.Wooden case and vacuum package 2.As your requirements

name : HIOS digital Torque Meter HP-100

Model : Torque Meter HP-100

part number : HP-100

Quality : 100% Tested

specification : smt machine parts

Condition : New, new/used

package : carton box with foam protect

Measuring models : TRACK, PEAK, FIRST PEAK

External Dimensions(mm) : 230 ×124 ×65.2 (H)

Charging time : 1.2V NiMH x 5 cells 1,000mA (within 6 hours)

Contact Now

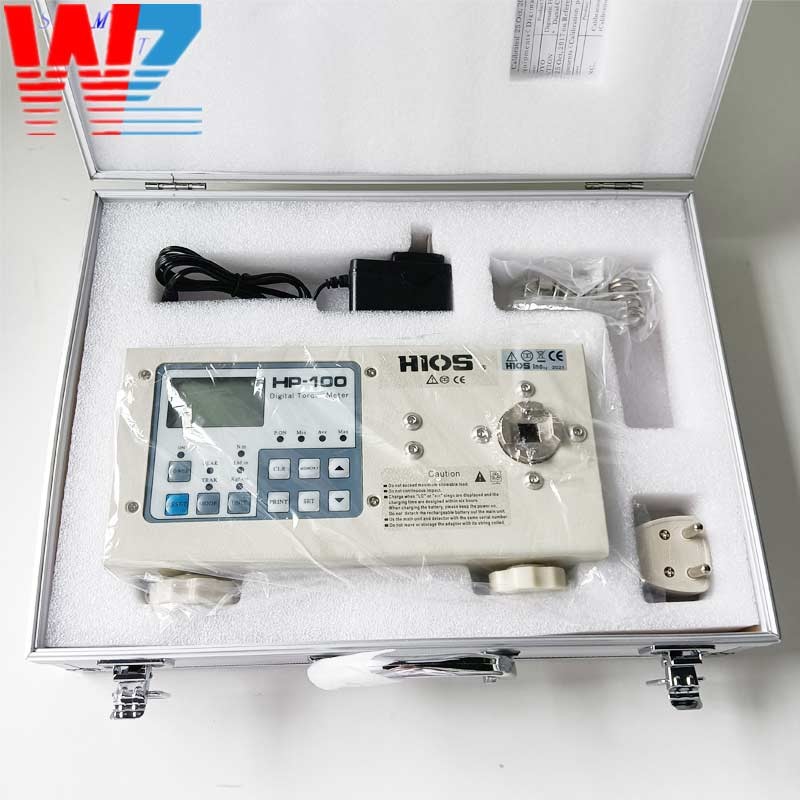

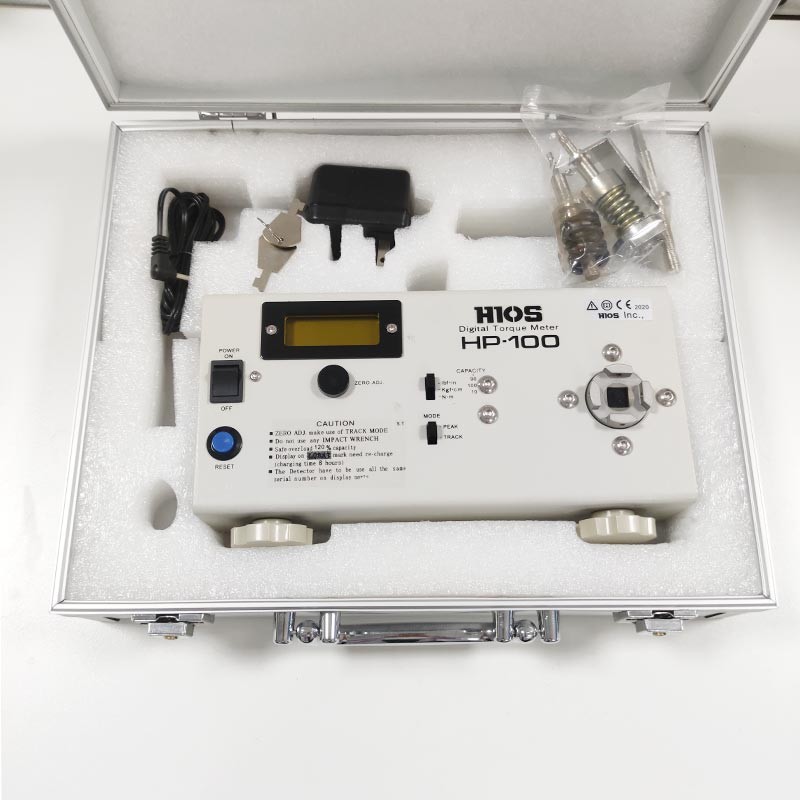

HIOS digital Torque Meter HP-100

More Details:

Name:

HIOS digital Torque Meter HP-100

Brand:

HIOS

Model:

HP-100

Specification:

HIOS digital Torque Meter HP-100

Condition:

original new/used and copy new

Quality:

top quality

Stock:

large

Payment:

T/T before shipment

Shipment:

on-time shipment

Delivery:

fedex,ups,dhl,as required

Package:

carton box with foam protect

Use for making torque settings on electric screwdrivers, checking torque of torque wrenches or measuring torque of various rotating units, etc.

Measured data can be imported to a computer.
Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
New product, HP-1 is ideal for measuring 10N･cm or smaller torque.
Torque for both clockwise or counterclockwise can be measured.
As a standard specificataon, data output and analogue output are available.
We offer calibration and maintenance services.
“Inspection Report" is attached to all the Torque Meters

Model		Peak mesuring range	Accuracy	Measuring models	External Dimensions(mm)	Weight(g)	Detector	Detectorcord	Charging time	Continuous operating time ona full charge	Battery life	Exclusive battery charger
		N・m					Bit socket
		kgf・cm			External Dimensions(mm)	Weight(g)
		lbf・in			Display unit	Torque display
					Detector	Detector
HP-1	−	-	Within ±0.5% (F.S.)	TRACK, PEAK, FIRST PEAK	230 124 65.2 (H)	1.8kg	−	−	1.2V NiMH x 5 cells 1,000mA (within 6 hours)	8 hours	About 300 charges	Input:AC 100-240V (50 / 60Hz)
		-			−	−						Output:DC 7.3-8V 0.5 A
		0.015-0.9			−	−
HP-10	−	0.015-1	Within ±0.5% (F.S.)	TRACK, PEAK, FIRST PEAK	230 124 65.2 (H)	1.8kg	−	−	1.2V NiMH x 5 cells 1,000mA (within 6 hours)	8 hours	About 300 charges	Input:AC 100-240V (50 / 60Hz)
		0.15-10			−	−						Output:DC 7.3-8V 0.5 A
		0.15-9			−	−
HP-100	−	0.15-10	Within ±0.5% (F.S.)	TRACK, PEAK, FIRST PEAK	230 124 65.2 (H)	1.8kg	−	−	1.2V NiMH x 5 cells 1,000mA (within 6 hours)	8 hours	About 300 charges	Input:AC 100-240V (50 / 60Hz)
		1.5-100			−	−						Output:DC 7.3-8V 0.5 A
		1.5-90			−	−
